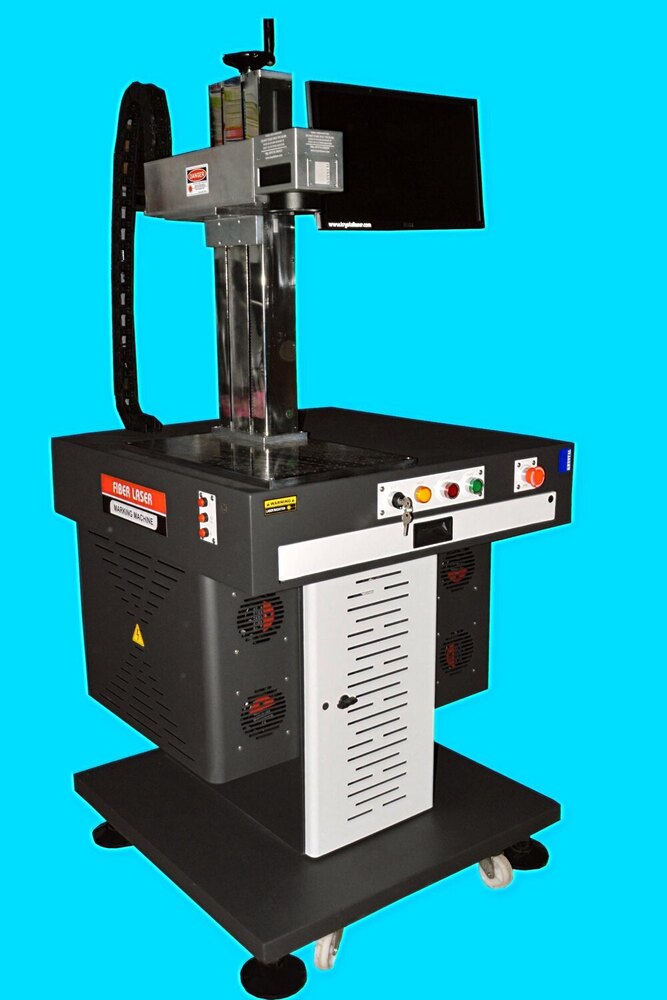

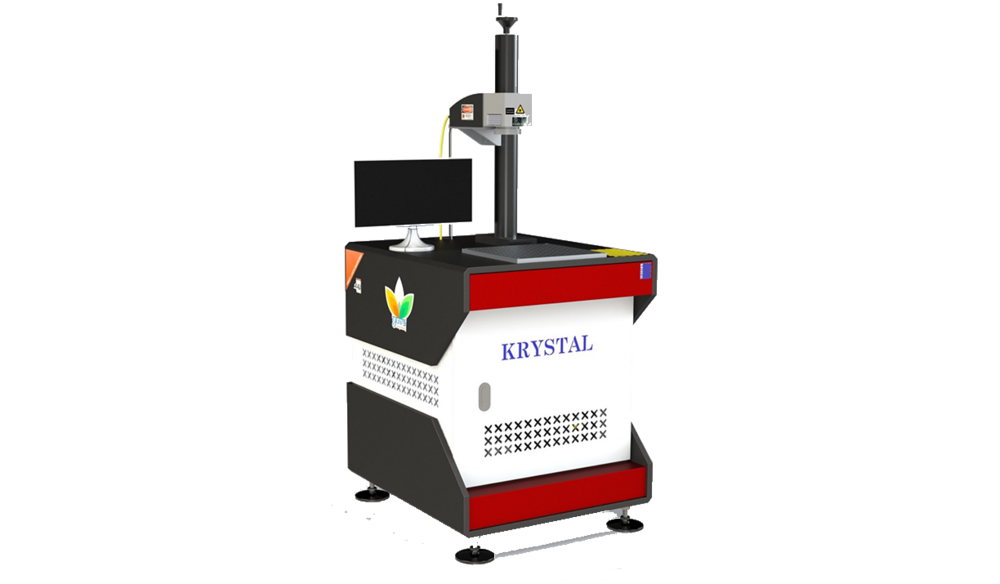

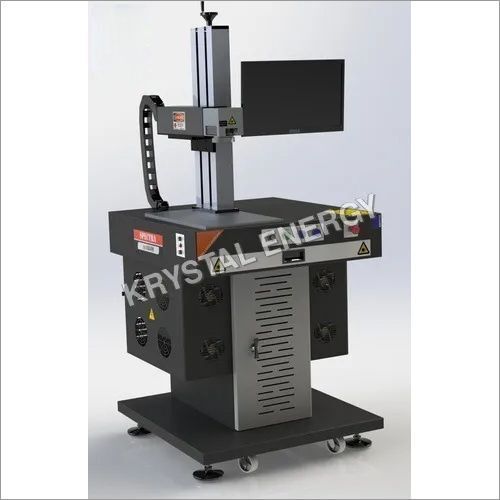

Q Switched Fiber Laser Marking System

Product Description

Since the day of our arrival in the market, we have been continuously proving the quality and efficiency of our systems and machines. Q Switched Fiber Laser Marking System is one of our supreme and easily operational systems available at market leading prices. This marking system is generally used to mark different materials such as metals, plastics, rubbers, ceramics etc., using a laser beam, at a surface level. Our esteemed clients can avail our efficient marking system as its beam can be employed in different ways which helps them to achieve their variable desired requirements. Our system has gone through multiple quality checks and emerges as a quality proven fiber laser marking system.

Features of Q Switched Fiber Laser Marking System:

1) It is flexible in nature which offers the control, speed and quality.
2) It is applicative for surface marking.
3) Like hallmarking machine, this laser marking system also follows the non-contact process.
4) It is a time saving and cost efficient system.
5) It helps to define the depth of material for engraving.

Technical Details:

Average Output Power	20W   30W  50W
Laser Type	Fiber laser
Linear Speed	10,000 mm/Sec
Marking Area	100 X 100 mm (Optional)
Wavelength	1064 nm
Beam Deflection	Digital High Speed Galvanometer
Min Character Height	0.2 mm
Marking Depth	0.04 mm (Depend's upon material)
Power Supply	AC 220V 50KHz
Cooling method	Air Cooled (Temp : 24 C to 27 C) (Recommended)
Power Consu.	0.5kW/hr
Total Weight	160 kg
Dimensions	1500 x 650 x 650 mm
Protective Cover	Optional

High Precision Fiber Laser Technology

This Q Switched Fiber Laser Marking System delivers outstanding accuracy with precision levels better than 0.01 mm. The technology ensures clean, crisp, and permanent markings on metals and other materials, enhancing product quality and traceability in demanding environments.


Efficient and Compact Design

Measuring only 1500*650*650 mm, this machine fits comfortably into various production spaces without compromising performance. Its air cooling mechanism reduces maintenance requirements and makes installation straightforward, helping users integrate it seamlessly into their workflow.


Comprehensive Warranty and Local Support

With a robust 2-year warranty, this system guarantees dependable performance. Manufactured and supported by experienced providers in India, users benefit from local expertise, quick service response, and readily available technical support.
