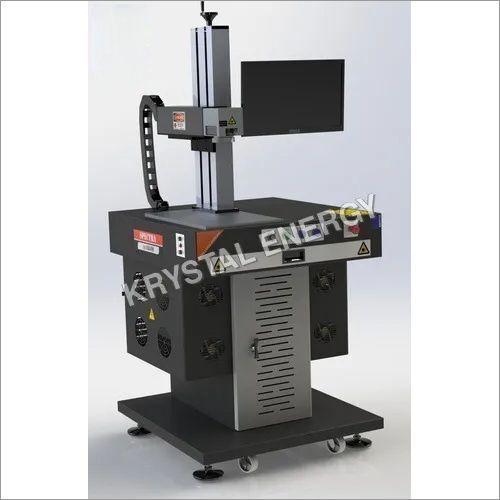

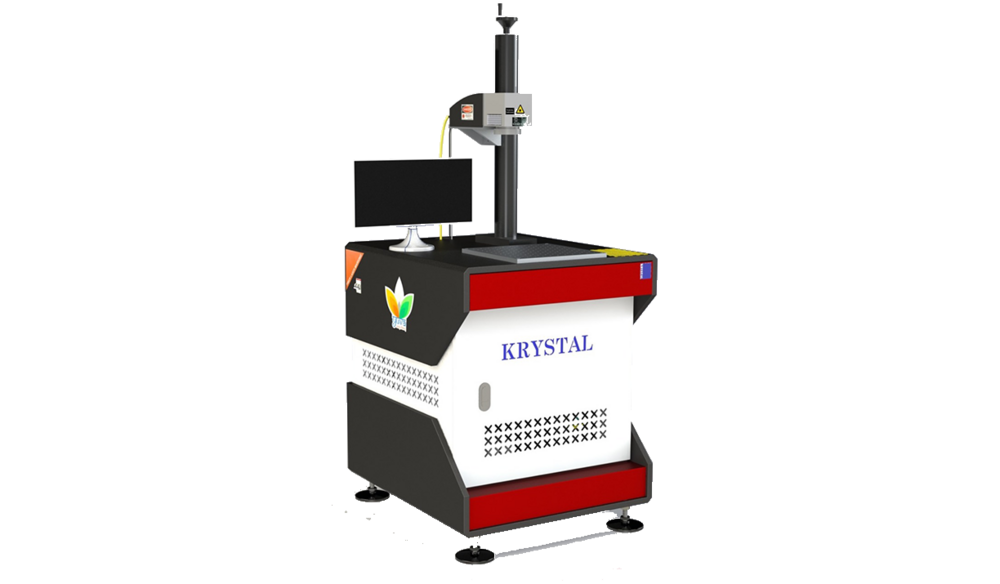

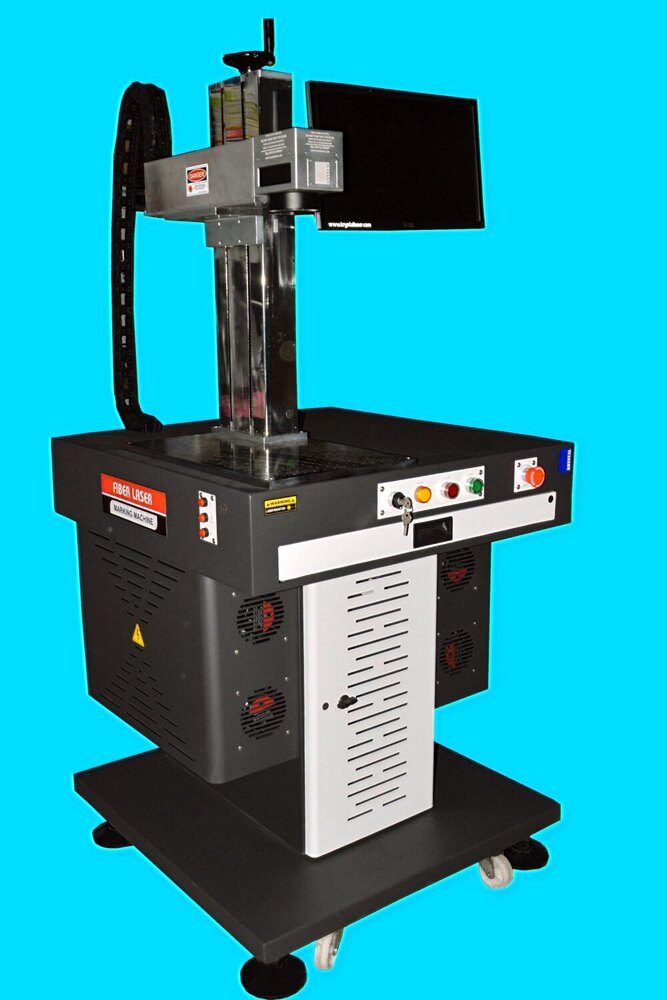

20W Fiber Laser Marking Machine
195000 INR/Unit
Product Details:
- Condition New
- Laser Type Fiber Laser
- Cooling Mode Air Cooling
- Product Type Fiber Laser Marking Machine
- Accuracy 99.99 %
- Warranty 1 year
- Click to View more
X
20W Fiber Laser Marking Machine Price And Quantity
- 195000 INR/Unit
- 1 , , Unit
20W Fiber Laser Marking Machine Product Specifications
- 1 year
- 99.99 %
- Air Cooling
- New
- Fiber Laser
- Fiber Laser Marking Machine
20W Fiber Laser Marking Machine Trade Information
- Ahemdabad
- Cash in Advance (CID)
- 5 , , Unit Per Week
- 25 Days
- Contact us for information regarding our sample policy
- Wooden
- Asia, South America, Africa
- All India
- ISO
Product Description
We are a manufacturer, supplier and exporter of 20W Fiber Laser Marking Machine. It is widely used in electronic components, hardware, sensors, auto parts, 3C electronics, crafts, precision apparatuses, electrical industry, daily consumer goods, gifts and ornaments, high-low-voltage appliances, medical equipments, bathroom accessories, IT industry, battery industry, etc. Customers can avail this 20W Fiber Laser Marking Machine in varied technical specifications at negotiable prices.
Standard configuration for the Fiber Laser Marking Series allow for many different options to meet any production need. Available options including programmable Z -Axis for focal height adjustments, rotary indexers for circumferential marking, rotary dial tables for simultaneous mark and laser operation and X-Y motion systems for increasing marking areas. Additional features include ease of installation allowing for quick start-up and graphical-based programming for a minimal learning curve. Required beyond those listed above will be quoted upon request.
"Piranha" marking series is Q Switched Fiber Laser Marking System are safe, state-of-the-art and alternatives for Nd:YAG and Nd:YVO4 lasers (Lamp-pumped, side-pumped diode, and End-pumped diode). Components including a Q Switched Fiber Laser with Scan Head, Industrial PC Controller, Power Supply, Marking Software and laser safety enclosure.
With international high-quality fiber laser, it can mark all sorts of precise patterns according to customer requirements;
Multiple power laser light source, available for many industries;
Fast speed, high efficiency, stable output power, high reliability;
Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;
Small and compact size, easy to carry, save production space.
Technical Specifications of 20W Fiber Laser Marking Machine :
| Model | SPECTRA -intelliMARK | | | | |
|---|---|---|---|---|---|
| Average Output Power | 10W | 20W | 30W | 40W | 50W |
| Laser Type | Fiber Laser | ||||
| Linear Speed | <7000mm/s | ||||
| Marking Area | 70x70mm 110x110mm (Optional) | ||||
| Wavelength | 1064 +/- 2nm | ||||
| Beam Deflection | Digital High speed Galavanometer | ||||
| Min Character Height | 0.2mm | ||||
| Marking Depth | 0.4mm depending on materials | ||||
| Min Linear Width | 0.01mm | ||||
| Power Supply | AC 220V 50KHz | ||||
| Protective Cover | Optional | ||||
Exceptional Marking Accuracy
Achieve sharp, clear, and lasting marks with a 99.99% accuracy rate. The 20W Fiber Laser Marking Machine is meticulously engineered to deliver consistent and precise results, making it ideal for applications demanding detailed engraving and strict tolerances.
Efficient Air Cooling System
Experience uninterrupted operation with the built-in air cooling system. This technology eliminates the need for water cooling, reducing maintenance and ensuring stable performance even during extended use.
Warranty and Local Support
Benefit from a comprehensive 1-year warranty and reliable after-sales service. As a manufacturer, supplier, and service provider based in India, we prioritize customer satisfaction and responsive technical support.
FAQ's of 20W Fiber Laser Marking Machine:
Q: How does a 20W Fiber Laser Marking Machine operate?
A: The 20W Fiber Laser Marking Machine utilizes advanced fiber laser technology, which directs a highly focused laser beam onto the material's surface. This process precisely alters the material to create permanent, high-definition marks, such as serial numbers, barcodes, and logos.Q: What types of materials can this fiber laser mark?
A: This machine is suitable for marking a wide range of materials including metals (steel, aluminum, copper), some plastics, ceramics, and more. The versatility and precision of the fiber laser make it ideal for diverse industrial applications.Q: When can I expect support or service if an issue arises?
A: As an Indian manufacturer and service provider, we offer dedicated customer support throughout the warranty period and beyond. Our team provides prompt assistance and technical service to minimize downtime and ensure continuous productivity.Q: Where is the 20W Fiber Laser Marking Machine manufactured and supported?
A: This product is manufactured, supplied, and service-supported in India, ensuring readily available assistance and shorter delivery lead times for customers across the region.Q: What is the process for marking with this machine?
A: The marking process involves placing your workpiece in the designated area, configuring the software for your desired design, and initiating the marking cycle. The fiber laser then generates clear and accurate marks without physical contact or distortion of the material.Q: How can users benefit from the air cooling system?
A: The air cooling mechanism provides efficient thermal management, eliminating the complexities of water cooling. This simplifies maintenance, extends machine lifespan, and leads to reduced operating costs.Q: What are the main advantages of using this fiber laser marking machine?
A: Key benefits include high accuracy (99.99%), minimal maintenance requirements, rapid marking speed, energy efficiency, and long operating life. It's a robust investment for industries seeking reliable and precise marking solutions.Tell us about your requirement
