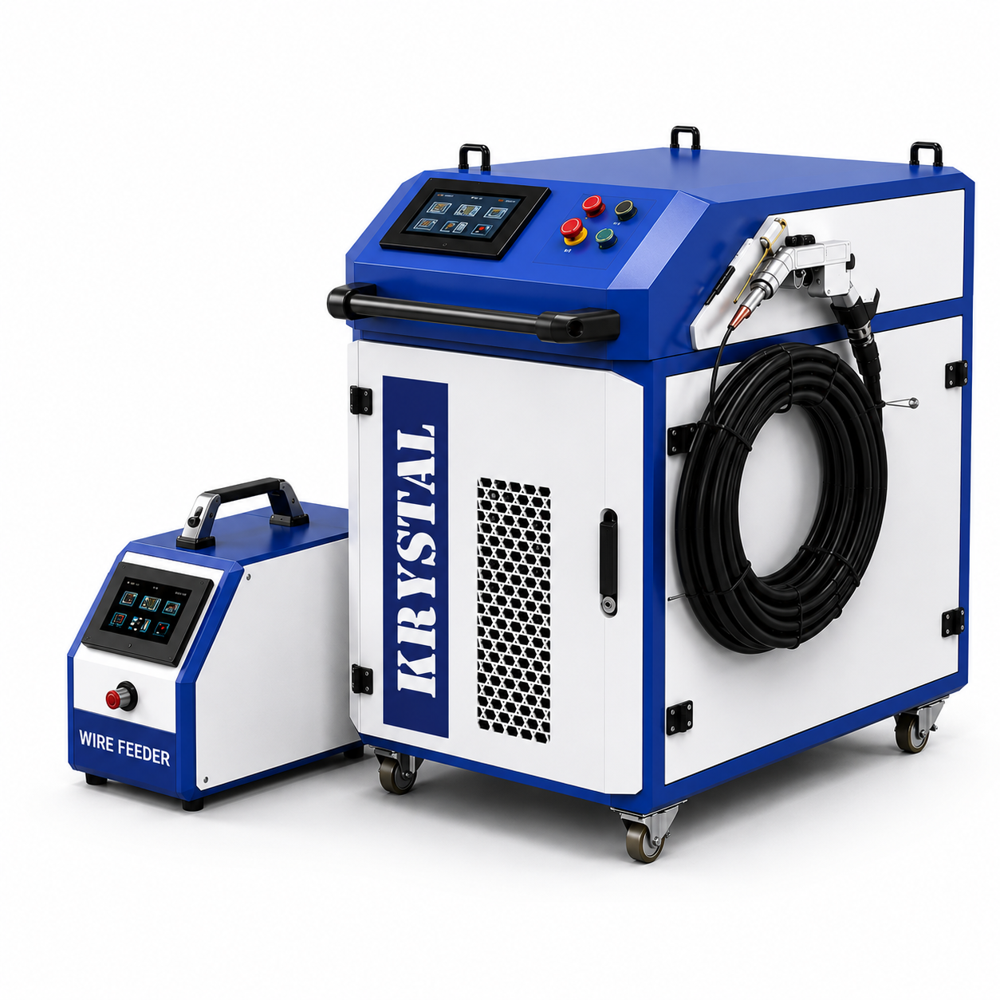

Avengers Laser Welding Machine

<< Previous

Send Inquiry

Product Code : PX

Price And Quantity

Minimum Order Quantity
1 Unit
Price Range
500000.00 - 2500000.00 INR/Unit

Product Description

Laser welding machine is mainly user for welding and repairing various mold materials. It is widely used in digital products, mobile phones, motorcycle and automobiles and other mold making and mold industries.

Technical Details:

Max. Output power	100W \| 200W \| 300W
Laser Type	ND:YAG
Wavelength	1064nm
Pulse Width	0.1ms - 25ms
Power Consu.	6KW
Diameter of welding stick	? 1 ~ ? 0.2(optional)
Power Supply	380V10% 50HZ 60A
Machine Dimension	1170mm x 1250mm x 560mm
Laser spot range	02mm - 3.0mm
Control system	Single chip Microcomputer
Aiming positioning	Microscope (CCD, Red Beam Indication)
Cooling system dimensions	560mm x 800mm x 400mm
3D worktable working area	200mm x 200mm x 300mm
Load-bearing weight	150kg
Machine dimensions	1170mm x 1250mm x 560mm
